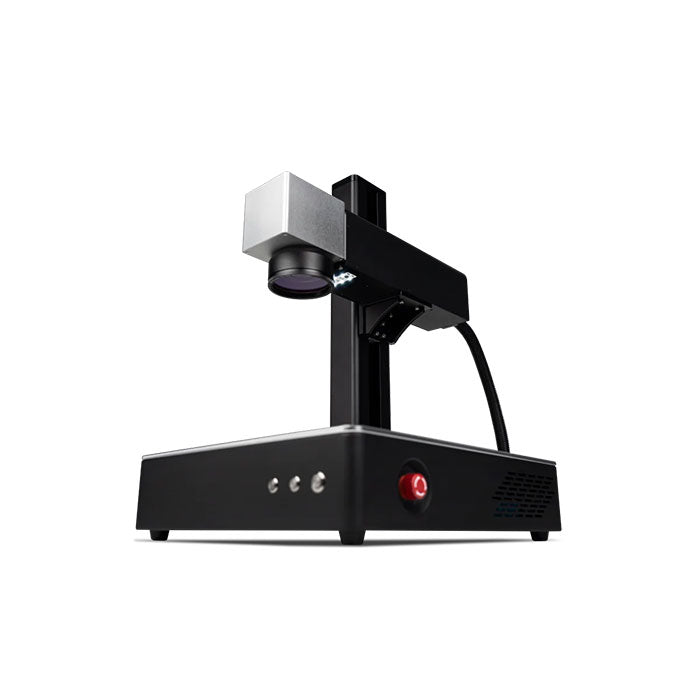

FLUX Promark MOPA Laser: 100W Color-Capable Metal Marking at 10,000 mm/s
The FLUX Promark MOPA Laser is a 100W MOPA fiber laser engraver built for high-speed, high-detail metal marking with capabilities a standard fiber source can't match. Its adjustable pulse width of 2–500 ns — versus the fixed 100–120 ns pulse of the standard Promark Desktop — unlocks color engraving with relatively stable colors on metal, improved plastic engraving, and both light and dark engraving effects on alumina (aluminum oxide). Combined with advanced 3D engraving and depth engraving, the Promark MOPA gives creations texture, dimension, and vibrant color that stand apart from conventional laser marks. It operates at a 1064 nm wavelength, delivers marking speeds up to 383.70 in/s (10,000 mm/s), and focuses to an ultra-fine 0.0012" (0.03 mm) laser spot across an 8.7" x 8.7" (220 x 220 mm) work area.
The Promark MOPA supports more than 150 materials — all metals plus black acrylic, plastic, and stone — handling everything from precision tool marking to custom engraving on fine metal pieces like necklaces and keychains. Positioning is fully integrated: the built-in camera preview shows the work area in real time so designs can be dragged and aligned directly on the material, red light preview projects the job location onto the workpiece, and the motorized lift with dynamic focusing adjusts focal distance for both deep and fine engraving. FLUX's Chuck Rotary and Roller Rotary add-ons are supported for precise engraving on large cylindrical objects such as 40 oz tumblers.
The machine runs on FLUX's free Beam Studio software, compatible with Windows, macOS, and Linux across desktops, tablets, and smartphones, and also supports LightBurn for advanced engraving settings and professional control. It connects via USB-A and accepts JPG, PNG, DXF, AI, PDF, and BMP files. The standard Promark MOPA (Class 4, IEC 60825-1) includes an emergency stop button and protective safety goggles, while the optional Promark Safe+ enclosure creates a fully enclosed Class 1 (IEC 60825-1) working environment. For jewelers, production shops, and professionals who need color, depth, and speed in one desktop fiber platform, the FLUX Promark MOPA Laser is the top of the Promark line.

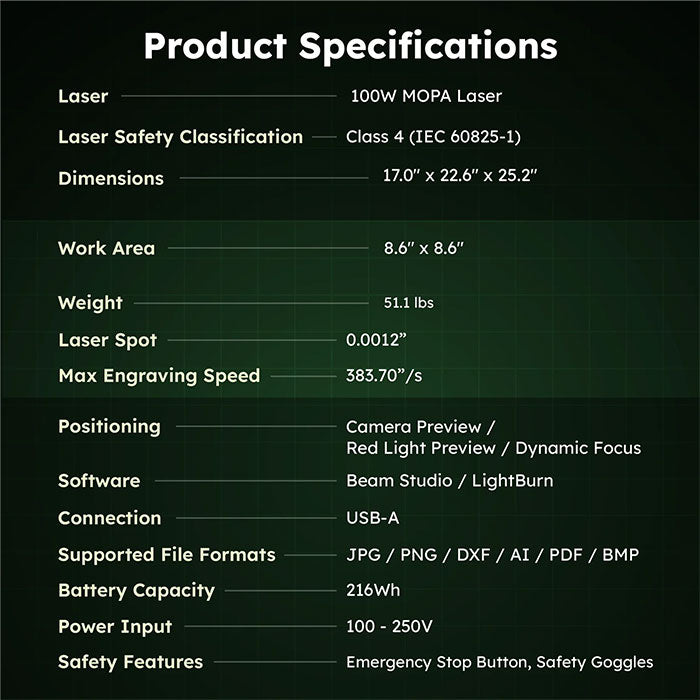

FLUX Promark MOPA pecs
- Laser:
- 100W MOPA Laser
- Laser Wavelength:
- 1064 nm
- Pulse Width:
- Adjustable (2 - 500 ns)
- Laser Safety Classification:
- Standard: Class 4 (IEC 60825-1) / Safe+: Class 1 (IEC 60825-1)
- Dimensions:
- 17.0" x 22.6" x 25.2" (431 x 574 x 641 mm)
- Weight:
- 51.1 lbs (23.2 kg)
- Work Area:
- 8.7" x 8.7" (220 x 220 mm)
- Laser Spot Size:
- 0.0012" (0.03 mm)
- Max Engraving Speed:
- 383.70 in/s (10,000 mm/s)
- Engraving Capabilities:
- 3D Engraving / Depth Engraving / Color Engraving
- Positioning:
- Camera Preview / Red Light Preview / Dynamic Focus
- Supported Materials:
- 150+ materials including metal, plastic, stone, and dark acrylic
- Software:
- Beam Studio / LightBurn
- Operating System:
- Windows / macOS / Linux
- Connection:
- USB-A
- Compatible Files:
- JPG / PNG / DXF / AI / PDF / BMP
- Power Input:
- 100 - 250V
- Rotary Support:
- Chuck Rotary / Roller Rotary add-ons
- Safety Features:
- Emergency Stop Button / Protective Safety Goggles / Safe+: Fully Enclosed Design
FLUX Promark MOPA Features
-
100W MOPA Laser with Adjustable Pulse Width: The 2–500 ns adjustable pulse width — versus the fixed pulse of standard fiber lasers — is what unlocks the Promark MOPA's expanded engraving effects and material control.
-
Color Engraving on Metal: Produces relatively stable color engraving effects, adding vibrant, unique character to stainless steel and other metal work that standard fiber lasers can't reliably achieve.
-
3D and Depth Engraving: Advanced dimensional engraving capabilities give work exceptional texture and depth alongside the color effects.
-
Light and Dark Alumina Effects: Delivers both light and dark engraving effects on alumina (aluminum oxide), where standard fiber sources produce light effects only, plus improved plastic engraving performance.
-
Blazing 10,000 mm/s Marking Speed: Marking speeds up to 383.70 in/s (10,000 mm/s) complete high-precision work in an instant, from intricate designs to maximum-throughput production.
-
Ultra-Fine 0.0012" Laser Spot: The 0.03 mm spot renders every detail flawlessly for fine text, logos, and photo-quality marks.
-
150+ Supported Materials: Marks all metals plus black acrylic, plastic, and stone — from precision tool identification to custom jewelry pieces like necklaces and keychains.
-
Camera Preview, Red Light Positioning, and Dynamic Focus: The built-in camera shows the work area in real time for drag-and-align placement, red light preview projects the job location, and the motorized lift with dynamic focusing dials in focal distance for deep or fine engraving.
-
Rotary Add-On Support: Compatible with FLUX's Chuck Rotary and Roller Rotary for precise engraving on cylindrical objects such as 40 oz tumblers.
-
Beam Studio and LightBurn Compatible: FLUX's free Beam Studio software works across Windows, macOS, and Linux on desktop, tablet, and smartphone, while LightBurn support provides advanced settings for professional users.
-
Safety in Every Configuration: The standard unit includes an emergency stop button and protective safety goggles, while the optional Promark Safe+ enclosure creates a fully enclosed Class 1 (IEC 60825-1) working environment.
FLUX Promark — Frequently Asked Questions
What is the difference between a MOPA laser and a standard fiber laser?
The key difference is pulse width. The Promark MOPA has an adjustable pulse width of 2–500 ns, while the standard Promark Desktop fiber laser uses a fixed 100–120 ns pulse. That adjustability gives the MOPA relatively stable color engraving on metal, better plastic engraving performance, and both light and dark engraving effects on alumina (aluminum oxide), where a standard fiber laser produces light effects only. Both operate at a 1064 nm wavelength.
Can the Promark MOPA engrave in color?
Yes. The Promark MOPA's adjustable pulse width enables color engraving with relatively stable colors on metal, along with 3D engraving and depth engraving effects.
What materials can the Promark MOPA mark and engrave?
The Promark MOPA supports more than 150 materials, including all metals, black acrylic, plastic, and stone. It handles everything from precision tool marking to custom engraving on fine metal pieces such as necklaces and keychains.
How does the Promark MOPA position and focus on materials?
Three systems work together: a built-in camera preview shows the work area in real time so designs can be dragged and aligned directly on the material, red light preview projects the job location onto the workpiece, and a motorized lift with dynamic focusing adjusts focal distance for both deep and fine engraving.
Can the Promark MOPA engrave cylindrical objects like tumblers?
Yes. The Promark MOPA supports FLUX's Chuck Rotary and Roller Rotary add-ons, enabling precise engraving on large cylindrical objects such as 40 oz tumblers.
What software does the Promark MOPA use?
The Promark MOPA works with FLUX's free Beam Studio software, compatible with Windows, macOS, and Linux across desktops, tablets, and smartphones. It also supports LightBurn for advanced engraving settings and professional control.
What file formats does the Promark MOPA accept?
The Promark MOPA accepts JPG, PNG, DXF, AI, PDF, and BMP files.
What safety features does the Promark MOPA include?
The standard Promark MOPA is a Class 4 (IEC 60825-1) laser and includes an emergency stop button and protective safety goggles. The optional Promark Safe+ enclosure upgrades the machine to a fully enclosed Class 1 (IEC 60825-1) design for enhanced protection.
How does the Promark MOPA connect to a computer?
The Promark MOPA connects via USB-A.
