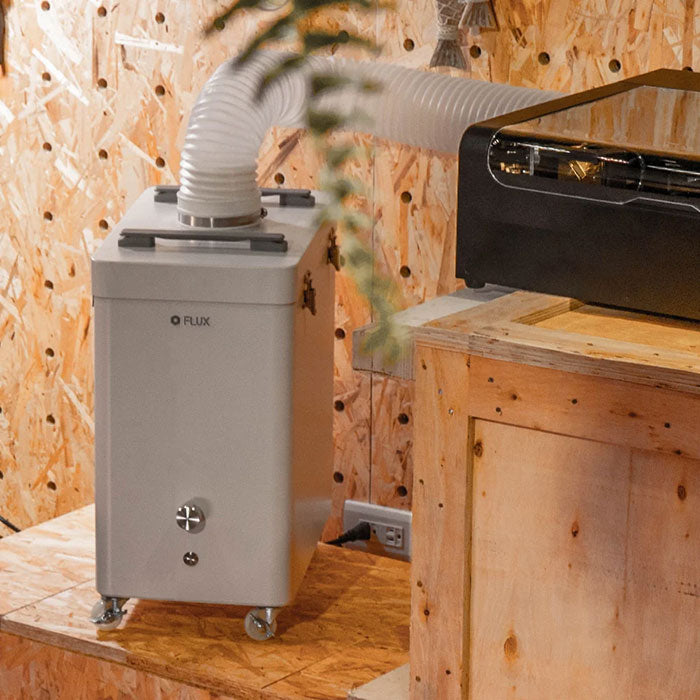

FLUX Beam Air Fume Extractor - 350 CFM Filtration for Desktop Laser Cutters
The FLUX Beam Air Fume Extractor is a four-layer filtration system that captures 99.9% of PM2.5 particles produced during laser cutting and engraving, letting FLUX laser owners run their machines indoors without venting through a window. Its 350 CFM (9,800 L/min) maximum airflow pulls smoke and fumes through a filtration stack of pre-filter, medium efficiency filter, HEPA filter, and activated charcoal filter, with each stage independently replaceable based on estimated service life: 10–30 hours for the pre-filter, 50–150 hours for the medium efficiency filter, 100–300 hours for the HEPA filter, and 300–600 hours for the activated charcoal filter.
Operation is built around convenience. Airflow is adjustable so users can balance extraction power against noise for quiet operation, and smart automation syncs the Beam Air's power state with FLUX laser cutters via USB-B connection — the extractor switches on and off automatically with the laser. While FLUX recommends it as the best match for the Ador, beamo, and Beambox Series, the Beam Air works universally with any laser cutter that has a standard 10 cm (3.94") outlet.
At 18.50" x 10.24" x 19.29" (470 x 260 x 490 mm) and 48.5 lbs (22 kg), the Beam Air keeps a space-saving footprint, and built-in wheels make it easy to reposition around the workshop. Drawing just 180W, the FLUX Beam Air gives home studios, classrooms, and small businesses a clean-air solution that fits wherever the laser goes.
FLUX Beam Air Specs
- Size:
- 18.50" x 10.24" x 19.29" (470 x 260 x 490 mm)
- Weight:
- 48.5 lbs (22 kg)
- Power:
- 180 W
- Inlet Diameter:
- 3.94" (100 mm)
- Max Flow:
- 350 CFM (9,800 L/min)
- Filtration:
- 4-layer system capturing 99.9% of PM2.5 particles
- Pre-Filter Replacement (Est.):
- 10 - 30 hours
- Medium Efficiency Filter Replacement (Est.):
- 50 - 150 hours
- HEPA Filter Replacement (Est.):
- 100 - 300 hours
- Activated Charcoal Filter Replacement (Est.):
- 300 - 600 hours
- Smart Automation:
- Auto power sync with FLUX laser cutters via USB-B connection
- Compatibility:
- Any laser cutter with a standard 10 cm outlet; best for Ador, beamo, and the Beambox Series
FLUX Beam Air Features
-
Powerful 4-Layer Filtration: A pre-filter, medium efficiency filter, HEPA filter, and activated charcoal filter work in sequence to capture 99.9% of PM2.5 particles from laser cutting fumes.
-
350 CFM Maximum Airflow: Moves up to 9,800 L/min of air, pulling smoke and fumes out of the laser enclosure fast enough to keep pace with heavy cutting jobs.
-
Adjustable Quiet Operation: Airflow is customizable, letting users dial in the right balance of extraction power and low noise for their workspace.
-
Smart Auto Power Sync: A USB-B connection to FLUX laser cutters switches the Beam Air on and off automatically with the laser — no separate power management needed.
-
Universal 10 cm Outlet Compatibility: Works with any laser cutter that has a standard 10 cm (3.94") exhaust outlet, with the Ador, beamo, and Beambox Series as its best-matched pairings.
-
Independently Replaceable Filter Stages: Each filter layer swaps out on its own schedule — estimated at 10–30 hours for the pre-filter, 50–150 hours for the medium efficiency filter, 100–300 hours for the HEPA filter, and 300–600 hours for the activated charcoal filter — so users only replace what's spent.
-

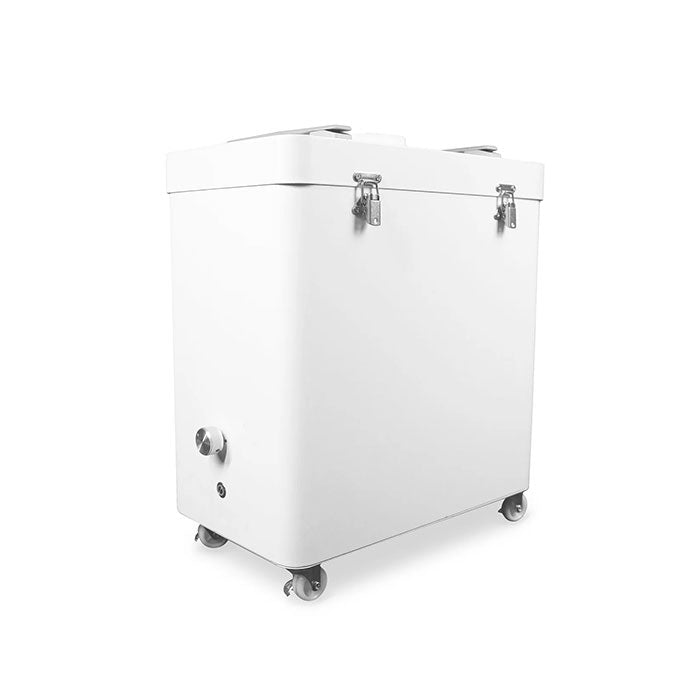

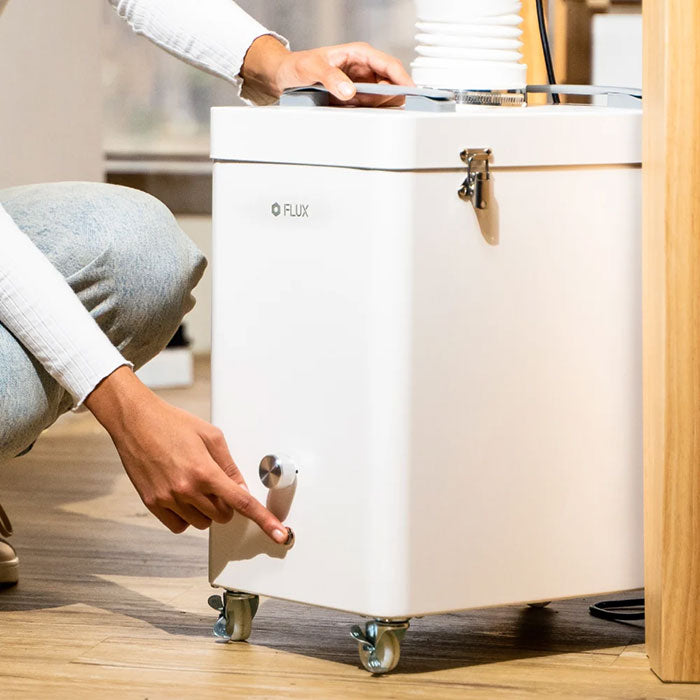

Compact Mobile Design: The space-saving 18.50" x 10.24" x 19.29" (470 x 260 x 490 mm) footprint and built-in wheels make it easy to tuck beside a laser or roll anywhere in the workshop.
FLUX Beam Air — Frequently Asked Questions
How does the Beam Air filter laser cutting fumes?
The Beam Air uses a 4-layer filtration system — a pre-filter, medium efficiency filter, HEPA filter, and activated charcoal filter — that captures 99.9% of PM2.5 particles, with airflow up to 350 CFM (9,800 L/min).
Which laser cutters work with the Beam Air?
The Beam Air works with any laser cutter that has a standard 10 cm (3.94") exhaust outlet. FLUX recommends it as the best match for the Ador, beamo, and Beambox Series.
Does the Beam Air turn on automatically with the laser?
Yes, when paired with a FLUX laser cutter. A USB-B connection enables auto power sync, so the Beam Air switches on and off automatically with the laser.
How often do the Beam Air filters need to be replaced?
Each layer has its own estimated replacement interval based on usage: the pre-filter every 10–30 hours, the medium efficiency filter every 50–150 hours, the HEPA filter every 100–300 hours, and the activated charcoal filter every 300–600 hours. Actual intervals vary with materials and workload.
Is the Beam Air loud?
The Beam Air is designed for adjustable quiet operation — airflow can be customized to balance extraction power against noise levels for the workspace.
Can the Beam Air be moved around a workshop?
Yes. The Beam Air has a compact 18.50" x 10.24" x 19.29" (470 x 260 x 490 mm) footprint and built-in wheels for easy repositioning.
Does the Beam Air eliminate the need for window venting?
The Beam Air is a filtration-based fume extractor, capturing 99.9% of PM2.5 particles through its 4-layer system so laser cutters can operate in spaces where venting outside isn't practical. Filters must be replaced on schedule to maintain filtration performance.
