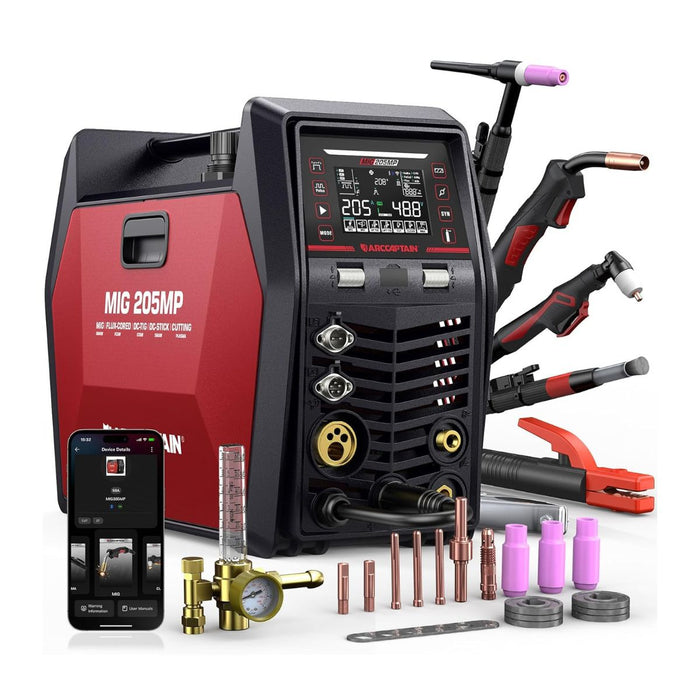

Arccaptain MIG205MP 9-in-1 Multi-Process Welder and Plasma Cutter
The Arccaptain MIG205MP is a true all-in-one machine that replaces a whole bench of equipment. It runs nine processes from a single compact unit: Gas MIG, Gasless Flux-Core MIG, Pulse MIG, DC HF TIG, DC Lift TIG, MMA Stick, Plasma Cutting, Surface Cleaning, and Spot Welding. Whether you are repairing a trailer, fabricating a project, or cutting sheet steel, this one machine handles it.
A large LED display with SYN synergic control does the hard part for you. Select your material and wire, and the machine sets the ideal current and wire feed speed automatically. You also get full app control within a 10 meter range, so you can fine-tune parameters and save unlimited named presets right from your phone. Dual voltage (120V and 240V) means it plugs in almost anywhere.
Built for real work, the MIG205MP delivers up to 205 amps at a 60 percent duty cycle, with plasma cutting through clean 3/8 inch and up to 2/3 inch material. Automatic voltage compensation, over-current and overload protection, and smart cooling keep it safe and reliable job after job.
Arccaptain MIG205MP Specifications
-
Welding Processes: 9-in-1 (Gas MIG, Flux-Core MIG, Pulse MIG, DC HF TIG, DC Lift TIG, MMA Stick, Plasma Cut, Clean, Spot)
-
Input Voltage: Dual 120V / 240V
-
Rated Input Power: 4.9 KVA (120V) / 6.9 KVA (240V)
-
MIG Current Range: 30 to 205A
-
TIG / MMA Current Range: 20 to 205A
-
Plasma Cut Current: 20 to 50A
-
Cutting Thickness: Clean cut 3/8 in (10 mm), max 2/3 in (18 mm)
-
Duty Cycle: 60%
-
Wire Sizes: 0.6 / 0.8 / 0.9 / 1.0 mm; electrode 1.6 to 3.2 mm
-
Enclosure Class: IP21S
-
Standard: ANSI / NEMA / IEC 60974-1
-
Weight: 9.8 kg (21.6 lb)
-
Dimensions: 17.3 x 12.7 x 7.9 in
Arccaptain MIG205MP Features
-
Nine processes, one machine: Weld, cut, and clean without swapping equipment.
-
Smart SYN control: Auto-matches current and wire speed to your material for clean results with less setup.
-
Full app control: Adjust settings and save unlimited named presets from your phone within 10 meters.
-

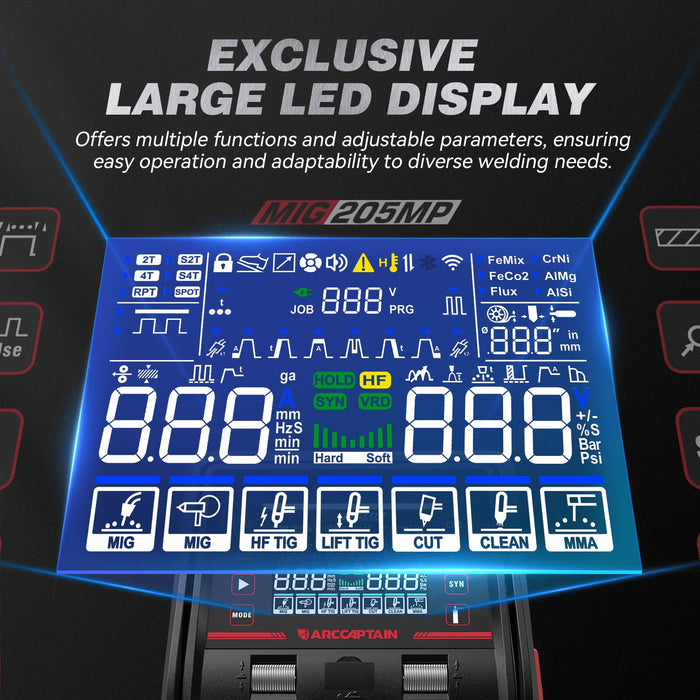

Large LED display: Clear parameter readout with safety color alerts and voice prompts.
-
Dual voltage: Runs on standard 120V household power or 240V for full output.
-
Aluminum ready: Spool-gun compatible for aluminum work (spool gun sold separately).
What Materials Can It Weld?
Mild steel, stainless steel, carbon steel, and aluminum (with an optional spool gun). Ideal for automotive repair, home garage projects, metal fabrication, and light industrial work.
Your Satisfaction is Guaranteed
- 3-Year Manufacturer Warranty
- Lowest Price Guarantee
