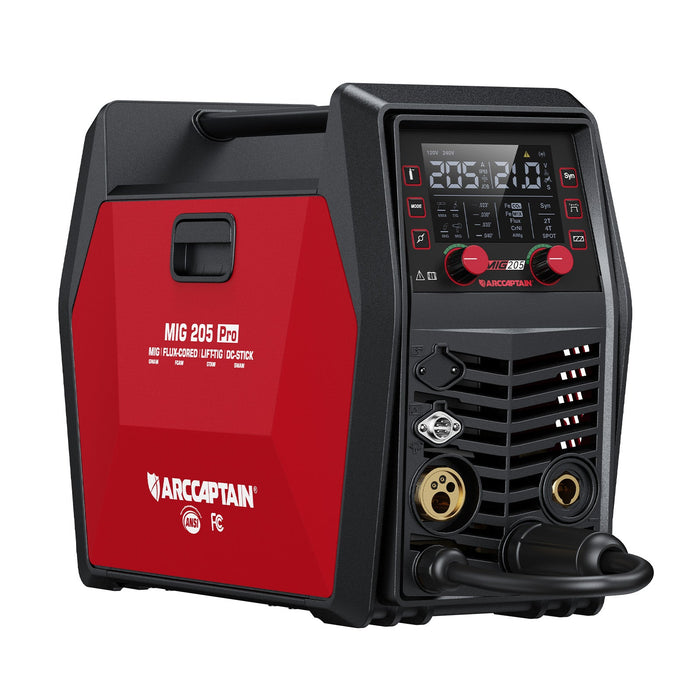

Arccaptain MIG205 Pro 6-in-1 Multi-Process MIG Welder
The Arccaptain MIG205 Pro is the upgraded workhorse in the lineup, built for welders who want professional results without a professional learning curve. It runs six processes from one machine: Gas MIG, Gasless Flux-Core MIG, MMA Stick, Lift TIG, Spot Welding, and Spool Gun aluminum welding. From weekend garage projects to full-time fabrication, it is your shop partner.

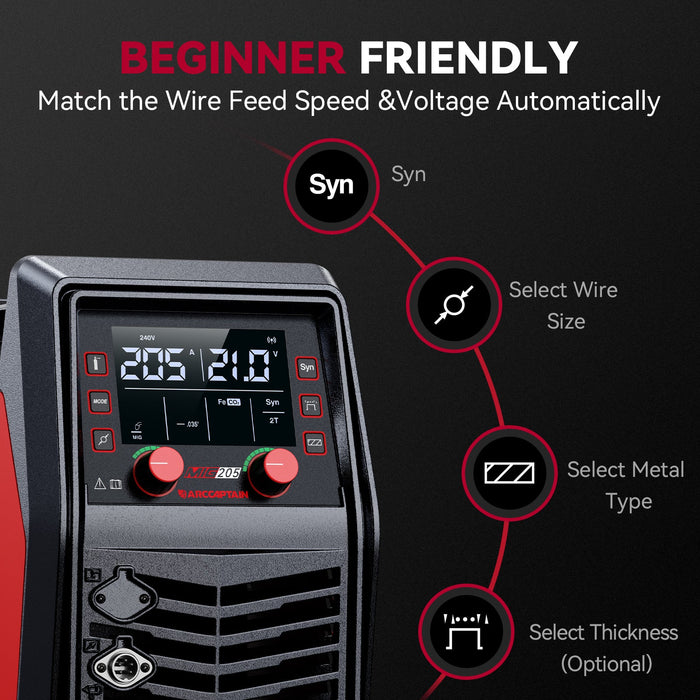

SYN synergic technology matches wire feed speed and current automatically once you pick your wire and material, so you can start MIG welding in three steps. Adjust settings remotely and save your favorite programs through the app. Under the hood, an upgraded MCU chip and a powerful 40W wire feeder deliver 35 percent better arc stability, 45 percent faster arc starts, and smoother, more consistent feeding than the MIG200.
With dual voltage (120V and 240V), a 60 percent duty cycle, and up to 205 amps of output, the MIG205 Pro welds carbon steel, stainless, alloy steel, copper, cast iron, and aluminum from 1/32 inch up to 3/8 inch. A 240V-to-120V adapter is included so you can run it anywhere.
Arccaptain MIG205 Pro Specifications
-
Welding Processes: 6-in-1 (Gas MIG, Flux-Core MIG, MMA Stick, Lift TIG, Spot, Spool Gun)
-
Input Voltage: Dual 120V / 240V
-
Rated Input Power: 5.9 KVA (120V) / 8 KVA (240V)
-
MIG Current Range: 30 to 140A (120V) / 30 to 205A (240V)
-
TIG / MMA Current Range: 20 to 140A (120V) / 20 to 205A (240V)
-
Wire Feed Speed: Up to 630 in/min (40W feeder)
-
Duty Cycle: 60%
-
Wire Sizes: 0.023 / 0.030 / 0.035 / 0.040 in; aluminum 0.035 / 0.045 in
-
Material Thickness: 1/32 in to 3/8 in
-
Enclosure Class: IP21S
-
Standard: ANSI / NEMA / IEC 60974-1
-
Weight: 20.5 lb
-
Dimensions: 17.3 x 7.9 x 12.7 in
Arccaptain MIG205 Pro Features
-
Six processes in one: MIG, flux-core, stick, lift TIG, spot, and spool gun aluminum.
-
SYN synergic control: Auto-sets current and wire speed so you can weld in three steps.
-

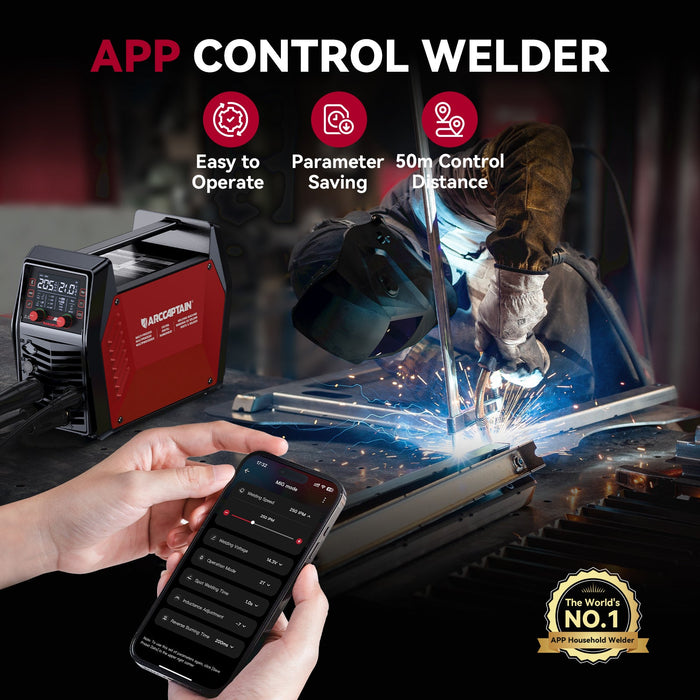

App control: Adjust parameters and save custom programs from your phone.
-
Upgraded feeder and chip: 40W wire feeder and MCU chip for faster starts and steadier arcs.
-
2T/4T trigger and burn-back control: Pro features for cleaner, more comfortable welding.
-
Full protection suite: Overcurrent, overvoltage, overload, and overheating protection.
What's in the Box
MIG205 Pro welder, 10 ft MIG torch, electrode holder (10 ft), ground clamp (10 ft), 240V-to-120V adapter, gas hose (10 ft), Teflon aluminum liner, contact tips, wire feed rollers, nozzle, gas diffuser, wrench, .035 in MIG wire (2 lb), CO2 gas regulator, and protection cover.
Your Satisfaction is Guaranteed
- 2-Year Manufacturer Warranty
- Lowest Price Guarantee
