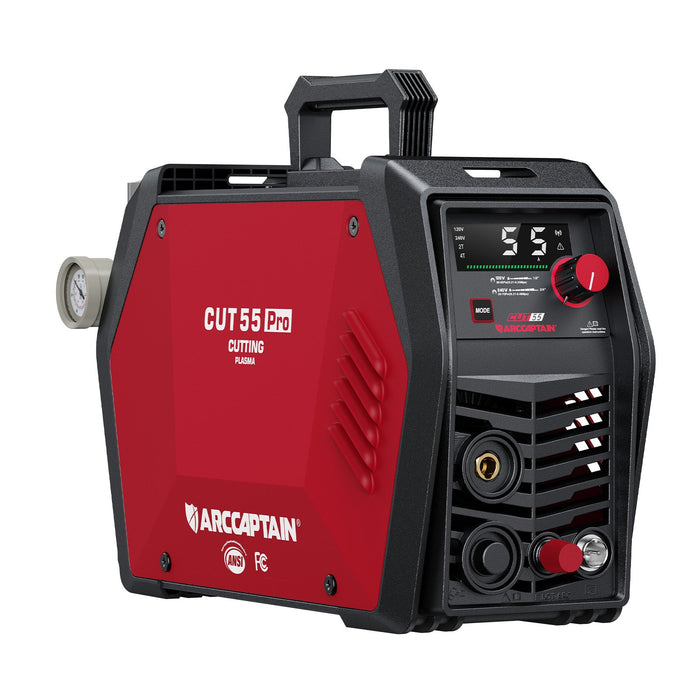

Arccaptain CUT55 Pro Pilot Arc Plasma Cutter
The Arccaptain CUT55 Pro is a no-touch pilot arc plasma cutter that slices cleanly through steel, stainless, aluminum, copper, and other conductive metals. The pilot arc starts the cut without touching the workpiece, which means cleaner cuts, less consumable wear, and the ability to cut through rusted, painted, or expanded metal with ease.
Dual voltage (120V and 240V) gives you flexibility from the garage to the job site. On 240V, the CUT55 Pro delivers a clean cut up to 1/2 inch (12 mm) and a maximum severance cut up to 3/4 inch (20 mm). Bluetooth app connectivity, 2T/4T control, an air-pressure sensor with regulator, and intelligent post-flow round out a smart, easy-to-use package.
At just 11.5 lb, it is genuinely portable, and it runs on standard compressed air with no special gas required. The kit includes the torch, consumables, air hose, ground clamp, and accessories.
Arccaptain CUT55 Pro Specifications
-
Type: Non-touch pilot arc plasma cutter
-
Input Voltage: Dual 120V / 240V
-
Output Current: 35A (120V) / 55A (240V)
-
Clean Cut Thickness: Up to 1/2 in (12 mm) at 240V
-
Max Severance Cut: Up to 3/4 in (20 mm)
-
No-Load Voltage: 330V
-
Duty Cycle: 60%
-
Air Supply: Compressed air (built-in pressure sensor and regulator)
-
Enclosure Class: IP21S
-

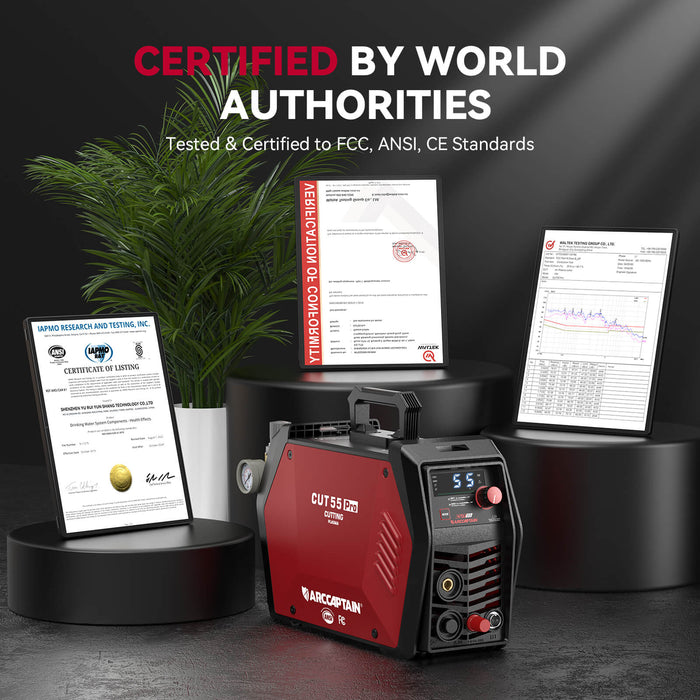

Standard: ANSI / NEMA / IEC 60974-1
-
Weight: 11.5 lb (5.2 kg)
-
Dimensions: 17.8 x 9.6 x 6.1 in
Arccaptain CUT55 Pro Features
-
Pilot arc, no-touch start: Cuts rusted, painted, and expanded metal cleanly without touching the surface.
-
Cuts up to 3/4 inch: Clean 1/2 in cuts and up to 3/4 in max severance.
-
Dual voltage: Runs on 120V or 240V for shop or field use.
-
Bluetooth app control: Adjust and monitor settings from your phone.
-
Air-pressure sensor: Dial in the right pressure with the built-in regulator.
-
Lightweight and portable: Just 11.5 lb, runs on standard compressed air.

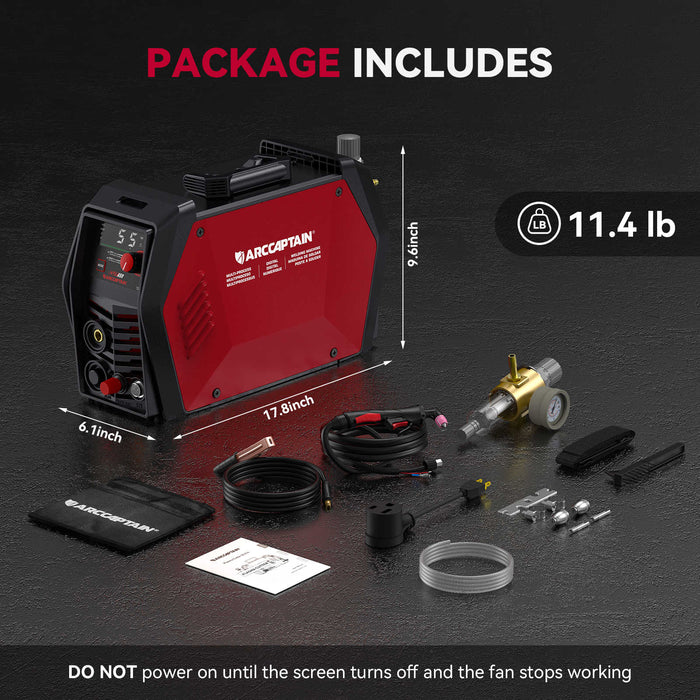

What's in the Box
CUT55 Pro cutting machine, cutting torch, consumables, air hose, ground clamp, and accessories. Just connect your air compressor and start cutting.
