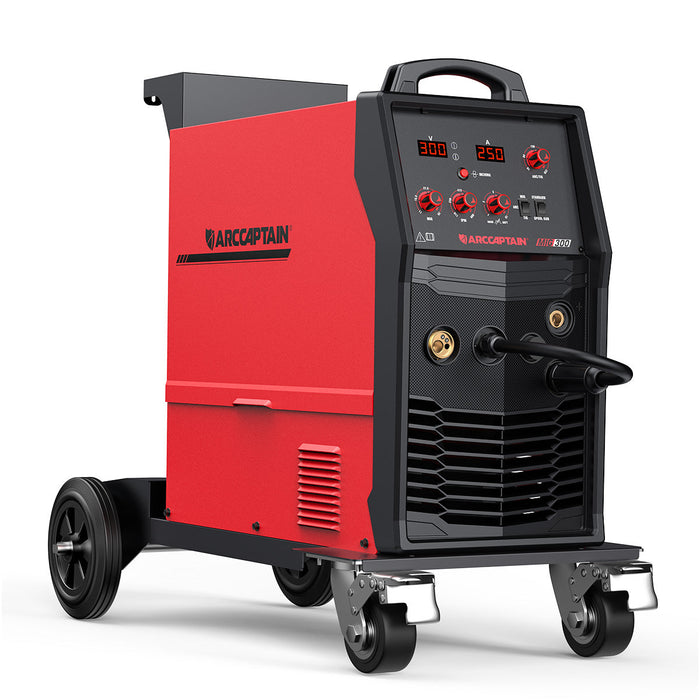

Arccaptain AIM-Forge 250A Industrial Heavy-Duty MIG Welder

Arccaptain AIM-Forge 250A Industrial Heavy-Duty MIG Welder

$1,499.00 - $1,499.00
$1,499.00
$1,499.00 - $1,499.00
$1,499.00

Arccaptain AIM-Forge 250A Industrial Heavy-Duty MIG Welder

The Arccaptain AIM-Forge is a 250-amp industrial multi-process welder built for continuous, all-day work. This is the machine you reach for when the portable units run out of headroom: it welds steel plate up to 1/2 inch, runs four processes, and feeds wire with a professional all-metal dual-drive system that grips even heavy 20 kg spools without slipping.

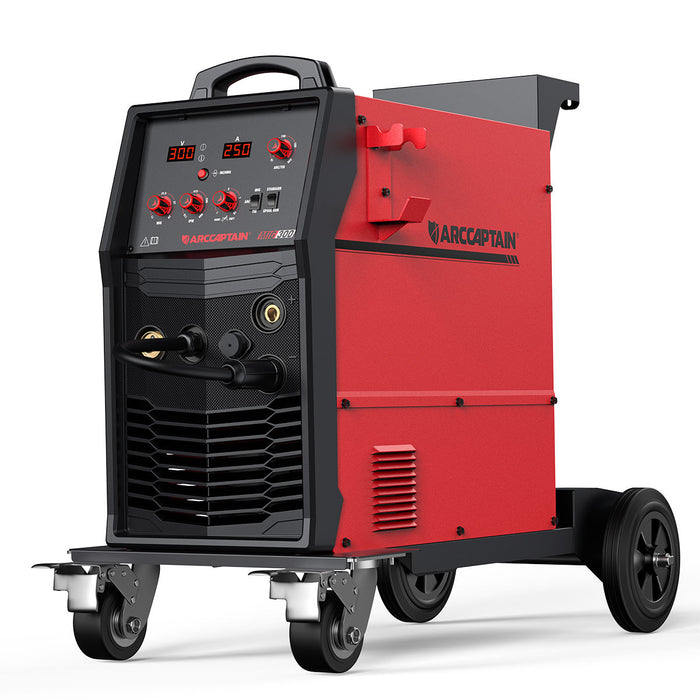

Four processes cover almost any job: Gas MIG, Gasless Flux-Core MIG, Lift TIG, and MMA Stick, with a dedicated connector for spool-gun aluminum welding. Precision arc control gives you adjustable inductance, burn-back control, and a clear digital display, while dual-drive feeding delivers a smooth 118 to 669 IPM wire speed for a stable arc and clean welds across a huge range of thicknesses.

Built for the shop and the job site, the AIM-Forge has an integrated cart, a built-in LED work light, a torch holder, and an internal bay that takes 5, 15, and 20 kg spools for long runs without reloading. It runs on 240V single-phase power and is engineered for demanding fabrication, auto repair, vessel repair, and on-site maintenance.

Arccaptain AIM-Forge Specifications

  • Welding Processes: MIG/MAG, Flux-Core, Lift TIG, MMA Stick (Spool Gun compatible)
  • Input Voltage: 240V single-phase, 50/60 Hz
  • MIG Output: 30 to 250A / 11 to 29V
  • MMA Output: 10 to 220A
  • Lift TIG Output: 10 to 220A
  • Wire Feed Speed: 118 to 669 IPM (dual-drive)
  • No-Load Voltage: 52V
  • Spool Compatibility: 5 / 15 / 20 kg
  • Max Single-Pass Thickness: Steel plate up to 3/8 in (10 mm); cast iron 12 mm; aluminum 8 mm (spool gun); copper/brass 6 mm
  • Enclosure Class: IP21S
  • Standard: IEC 60974-1
  • Weight: 143.7 lb (64.65 kg)
  • Dimensions: 40 x 23 x 33 in

Arccaptain AIM-Forge Features

  • 250A industrial output: Deep penetration and stable performance on plate up to 1/2 inch.
  • Four processes in one: MIG, flux-core, lift TIG, and stick, plus spool-gun aluminum.
  • All-metal dual-drive feeder: Two geared rollers prevent slipping, even on heavy spools.
  • Precision arc control: Adjustable inductance, burn-back, and a digital display.
  • Continuous-duty design: Takes 5/15/20 kg spools for long, uninterrupted runs.
  • Job-site ready: Integrated cart, built-in LED light, and torch holder.

What's in the Box

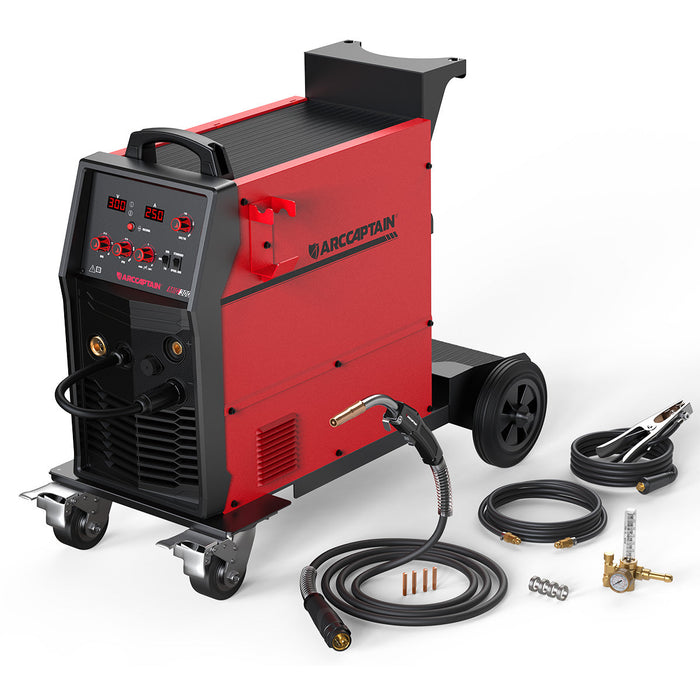

AIM-Forge welder, MIG Tweco torch (15.2 ft), ground clamp (15.2 ft), gas hose (10 ft), 2 contact tips (0.035 in), 2 contact tips (0.040 in), 2 knurled rollers, and gas regulator. Spool gun sold separately.

Your Satisfaction is Guaranteed

  • 2-Year Manufacturer Warranty
  • Lowest Price Guarantee
