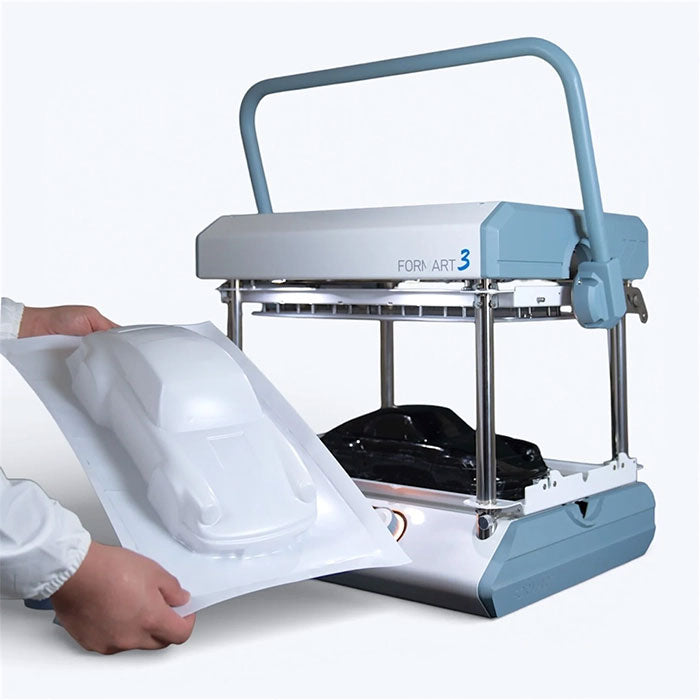

Formart 3 Vacuum Former
The MYYARD FORMART 3 is a professional-grade desktop vacuum forming machine built to bridge the gap between hobbyist tools and industrial manufacturing. Engineered for rapid prototyping, small-batch blister packaging, and precision mold making, it's suited to industrial designers iterating on concepts, STEAM educators managing a classroom, and small business owners scaling up production. A redesigned ergonomic handle paired with a balanced dual-pillar guide system supports one-handed operation, reducing operator fatigue during high-volume, repetitive forming cycles. The FORMART 3 switches tool-free between four work area sizes — 19.75 x 12 in, 16.5 x 12 in, 12 x 12 in, and 12 x 8 in — letting users match the frame to the project and reduce material waste, and a patented toggle clamp system locks sheets in place with a one-press lock and one-pull release for a consistently airtight seal.
Sheets heat via a 1500 W carbon fiber quartz heating element across a temperature range of 194–446°F, heating up to 3x faster than standard vacuum forming machines with edge-to-edge uniformity and no cold spots at the corners. A built-in 300 W industrial-grade vacuum pump provides an adjustable pressure range of -10 to 92 kPa, with two selectable suction modes: a low-pressure mode for fragile molds or delicate 3D-printed structures, and a fine mode that engages full suction power for maximum detail capture. Once a part is formed, the pump reverses airflow to force air between the mold and the plastic for automatic, damage-free de-molding, and an integrated cooling fan helps stabilize parts before removal.
The FORMART 3 also includes a built-in preheating program to improve forming quality across a wider range of materials, a complete materials database supporting both original and third-party plastic sheets, and storage for up to five custom user setting profiles. A plastic sheet dehumidifying function automatically removes moisture from sheets before forming to prevent air bubble defects. The machine is controlled through a 3.5-inch, 480 x 320 full-color LCD touchscreen, with audible alerts from a built-in speaker at key points in the forming cycle. It forms sheets up to 0.12 in thick to a maximum draw height of 6.30 in over an 18.11 x 10.24 in work area, measures 18.9 x 26.4 x 29.9 in (L x W x H), weighs 66 lb, and runs on a standard 120V AC, 1500 W power supply. It's well suited to functional prototypes and enclosures, low-volume blister packaging and display inserts, food-safe molds and architectural models, cosplay armor and visors, and custom RC body shells.
My Yard Formart 3 Specs
- Sheet Size:
- 4 Sizes: 19.75 x 12 in / 16.5 x 12 in / 12 x 12 in / 12 x 8 in
- Sheet Thickness:
- 0.01 to 0.12 in
- Work Area:
- 18.11 x 10.24 in
- Desktop Size (L x W x H):
- 18.9 x 26.4 x 29.9 in
- Max. Draw Height:
- 6.30 in
- Weight:
- 66 lb
- LCD Screen:
- 3.5", 480 x 320 Full Color LCD
- Heating Element:
- 1500 W Carbon Fiber Quartz Heating Tubes
- Temperature Range:
- 194 - 446 °F
- Pump Type:
- Built-In 300 W Industrial-Grade Vacuum Pump
- Pressure Range:
- -10 to 92 kPa (Adjustable)
- Speaker:
- Yes
- Auto Release Sheets:
- Yes
- Sheet Scanning:
- No
- Cooling Fan:
- Yes
- Power Supply:
- 120V AC @ 1500 W
My Yard Formart 3 Features
-
Ergonomic One-Handed Handle: A redesigned handle and balanced dual-pillar guide system reduce operator fatigue during high-volume, repetitive forming cycles.
-
Four Interchangeable Work Areas: Switch tool-free between 19.75 x 12 in, 16.5 x 12 in, 12 x 12 in, and 12 x 8 in sheet sizes to match the project and reduce material waste.
-
Patented Toggle Clamp System: A one-press lock and one-pull release workflow secures an airtight seal without multiple manual adjustments, cutting prep time and physical strain.
-
Automatic Forced De-Molding: The 300 W pump reverses airflow to inject high-pressure air between mold and plastic, releasing finished parts without damage.
-
Edge-to-Edge Heating Uniformity: An upgraded carbon fiber quartz heating matrix heats up to 3x faster than standard vacuum forming machines, with no cold spots at edges or corners.
-
Dual-Suction Modes: Low-pressure mode protects fragile molds and delicate 3D-printed structures, while fine mode engages full suction power for maximum detail capture.
-
Built-In Preheating Program: Improves forming quality and expands the range of materials the machine can successfully form.
-
Complete Materials Database: Built-in presets support original and third-party plastic sheets, with storage for up to five custom user setting profiles.
-
Plastic Sheet Dehumidifying: Automatically removes moisture from sheets before forming to prevent air bubble defects.
-
Adjustable Vacuum Pressure: Built-in 300 W industrial-grade pump offers a -10 to 92 kPa adjustable range.
-
Integrated Cooling Fan: Helps stabilize formed parts before removal for cleaner, more consistent results.
-
Full-Color Touchscreen Control: A 3.5" 480 x 320 LCD display manages heating, pressure, and forming settings.
-
Audible Process Alerts: Built-in speaker signals key points in the forming cycle so users can multitask safely.
My Yard Formart 3 FAQ
What sheet sizes does the MYYARD FORMART 3 support?
The FORMART 3 supports four interchangeable sheet sizes: 19.75 x 12 in, 16.5 x 12 in, 12 x 12 in, and 12 x 8 in.
What is the maximum sheet thickness the FORMART 3 can form?
The FORMART 3 forms sheets ranging from 0.01 to 0.12 in thick.
How does the FORMART 3 clamp sheets in place?
A patented toggle clamp system allows a one-press lock and one-pull release, creating an airtight seal without multiple manual adjustments.
Does the FORMART 3 release finished parts automatically?
Yes, the machine's pump reverses airflow to inject high-pressure air between the mold and plastic, releasing finished parts without damage.
What temperature range does the FORMART 3 heat to?
The 1500 W carbon fiber quartz heating element operates across a range of 194–446°F, heating up to 3x faster than standard vacuum forming machines.
How is vacuum pressure controlled on the FORMART 3?
A built-in 300 W industrial-grade vacuum pump provides an adjustable pressure range of -10 to 92 kPa, with a low-pressure mode for fragile molds and a fine mode for maximum detail capture.
Can the FORMART 3 save custom settings?
Yes, the machine can store up to five custom user setting profiles alongside its built-in materials database.
Does the FORMART 3 have a feature to prevent moisture-related defects?
Yes, a built-in dehumidifying function automatically removes moisture from plastic sheets before forming to prevent air bubbles.
What power supply does the FORMART 3 require?
The FORMART 3 runs on a standard 120V AC power supply at 1500 W.
How much does the FORMART 3 weigh?
The machine weighs 66 lb and measures 18.9 x 26.4 x 29.9 in (L x W x H).
