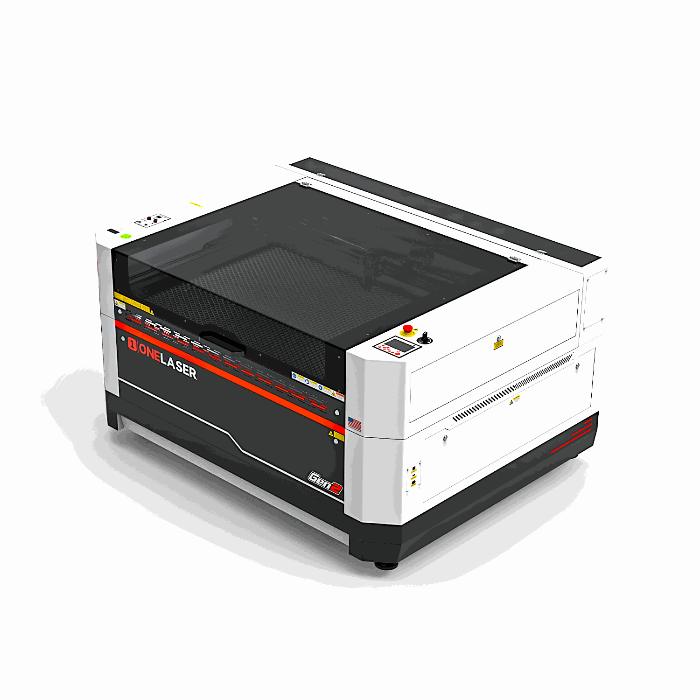

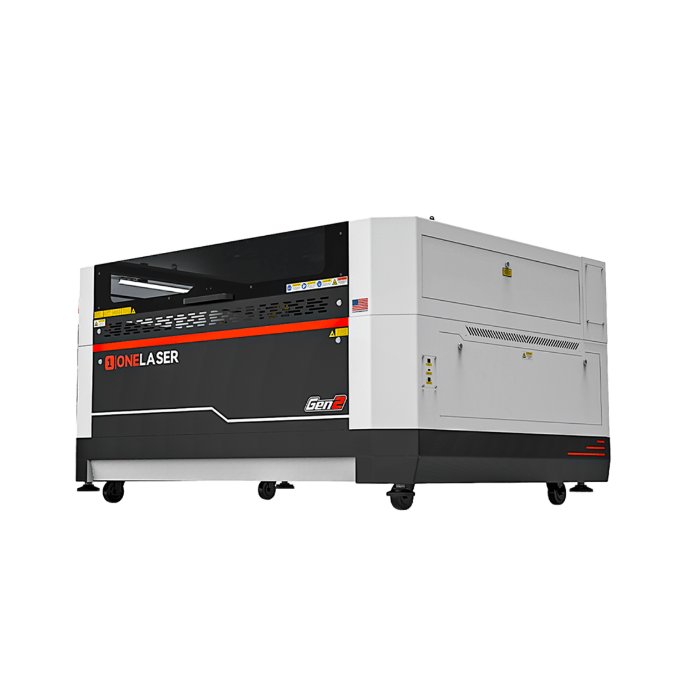

OneLaser Hydra™ 13 Gen2 - CO₂ Glass/RF Industrial Hybrid Laser Engraver
The OneLaser Hydra™ 13 Gen2 CO₂ Glass/RF Industrial Hybrid Laser Engraver scales the Gen2 platform up to serious production dimensions, pairing a large-format 51.18" x 35.43" work area with a dual-laser configuration that combines a 130W CO₂ glass tube and a 38W RF metal-sealed source (a single 70W RF configuration is also available). It's a pairing built for shops that refuse to compromise: the 130W glass tube powers through thick acrylic, hardwood, and production sheet stock, while the RF source's high-frequency, tight beam spot lays down crystal-sharp detail, consistent depth, and true 3D photorealistic engraving at up to 2,000 DPI. With a true 2,000 mm/s engraving speed, industrial-grade 4G acceleration, and a remarkable 8,000 mm/s travel speed, the Hydra 13 Gen2 covers its big bed at a pace smaller machines can't touch.

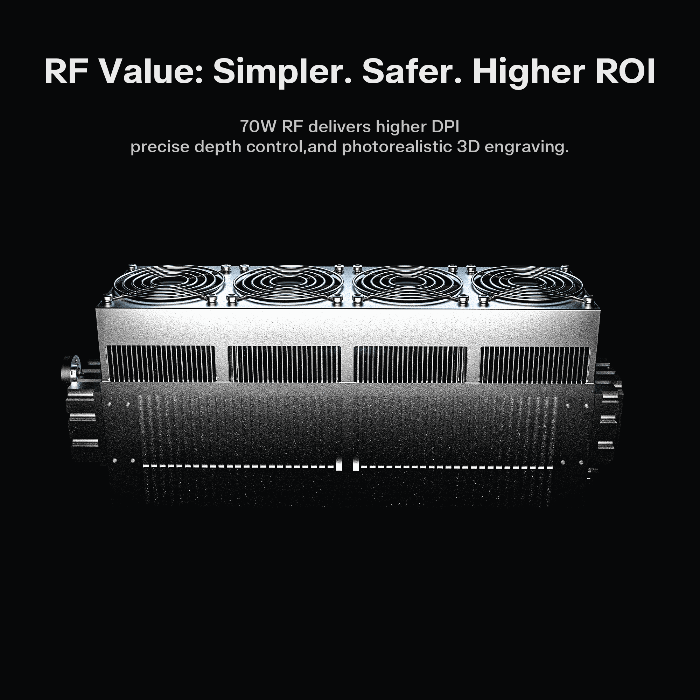

The engineering underneath matches the ambition. An ultra-high-speed servo motor with advanced PID closed-loop feedback eliminates the missed steps that distort patterns on stepper-driven machines, while the built-in X-axis linear rail and NVH-optimized construction hold ≤0.01 mm repeat positioning accuracy across the full 51-inch span — even at maximum speed. The RF source runs on maintenance-free air cooling with a 20,000–30,000 hour lifespan, multiple times longer than glass tubes, and the optional Q-Switch fiber upgrade (30W/50W, with a MOPA 60W option) extends the platform into high-speed flying metal engraving and large-format 2.5D metalwork — one machine, three laser technologies, every material.
For daily production, everything is built to keep jobs moving. The Smart Dual Air-Assist automatically switches between gentle engraving airflow and powerful cutting airflow, automatic Z-axis autofocus and red-dot positioning eliminate setup guesswork, and the GT5 industrial DSP control system with touchscreen and physical keys runs high-volume work offline. The front-to-back pass-through design handles long materials, the 66 lb table load and any-4-pin rotary compatibility keep heavy and cylindrical work in play, and the 1.5"–4" lens range swaps in seconds as full assemblies. Real-time temperature monitoring with alarms, automatic shutoff, and dedicated lens protection watches over the machine through long shifts — protection worthy of a system this capable.
OneLaser Hydra™ 13 Gen2 Specs
- Laser Source:
- 130W CO2 Glass + 38W RF Dual-Laser, or 70W RF Metal-Sealed CO2
- RF Tube Lifespan:
- 20,000–30,000 Hours
- Working Area:
- 51.18" × 35.43" (1300 × 900 mm)
- Z-Axis Travel:
- 8.86" (225 mm)
- Machine Dimensions (LxWxH):
- 74.8" x 41.1" x 40.7" (1900 × 1045 × 1035 mm)
- Machine Weight:
- 932.55 lb (423 kg)
- RF Cooling Method:
- Air Cooling
- Optional Fiber Laser Upgrade:
- Q-Switch 30W / 50W, MOPA 60W
- Motor:
- Ultra-High-Speed Servo with PID Closed-Loop Feedback
- Built-in Linear Rail:
- Yes (X-axis)
- Max Acceleration:
- 4G
- Max Engraving Speed:
- 2,000 mm/s
- Max Travel Speed:
- 8,000 mm/s
- Minimum Character Size:
- 0.0394" × 0.0394" (1.0 × 1.0 mm)
- Repeat Positioning Accuracy:
- ≤0.0004" (≤0.01 mm)
- Max Resolution:
- 2,000 DPI
- Max Table Load:
- 66.14 lb (30 kg)
- Rotary Compatibility:
- Any 4-Pin Rotary
- Air Assist System:
- Smart Dual Air-Assist (Built-in)
- Autofocus:
- Yes (Automatic Z-Axis Focusing)
- Red Dot Positioning:
- Yes
- Control Panel:
- GT5 Industrial DSP with Touchscreen and Keys, Offline-Capable
- Material Pass-Through:
- Yes (Front-to-Back)
- Lens Support:
- 1.5"–4" with Fast Full-Assembly Swaps
- Temperature Monitoring:
- Real-Time with Alarm and Auto Shutoff
- Lens Protection:
- Real-Time Lens Temperature Monitoring
OneLaser Hydra™ 13 Gen2 Features
-
130W Cutting Muscle + RF Detail in One Cabinet: The dual-laser configuration pairs a 130W CO₂ glass tube that powers through thick production stock with a 38W RF source for crystal-sharp fine work — no more choosing between throughput and quality (a single 70W RF configuration is also available).
-

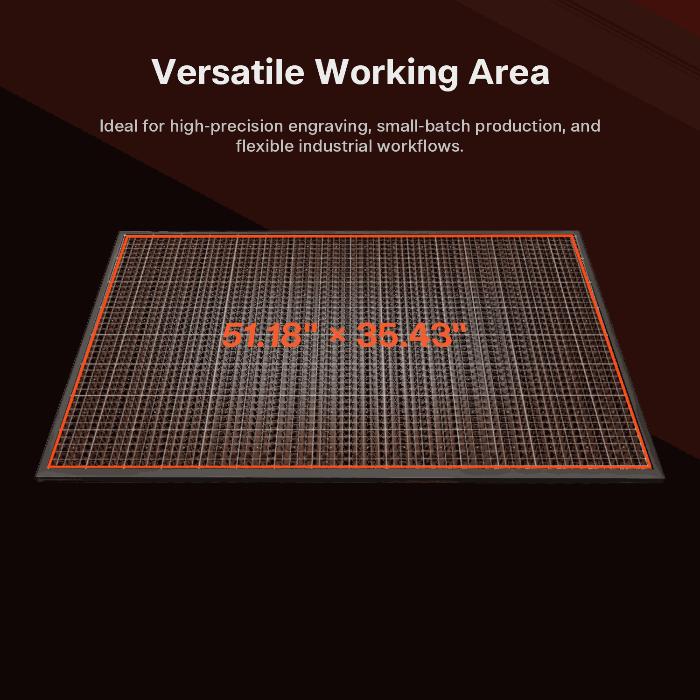

Large-Format 51.18" x 35.43" Work Area: Full production sheets, oversized signage, and big batch layouts fit in a single setup, dramatically cutting the material swaps and repositioning that eat into production hours.
-
True 2,000 mm/s with Industrial 4G Acceleration: Consistent detail at speeds where other machines slow down — and with an 8,000 mm/s travel speed, the head crosses this big bed between cuts in the blink of an eye.
-

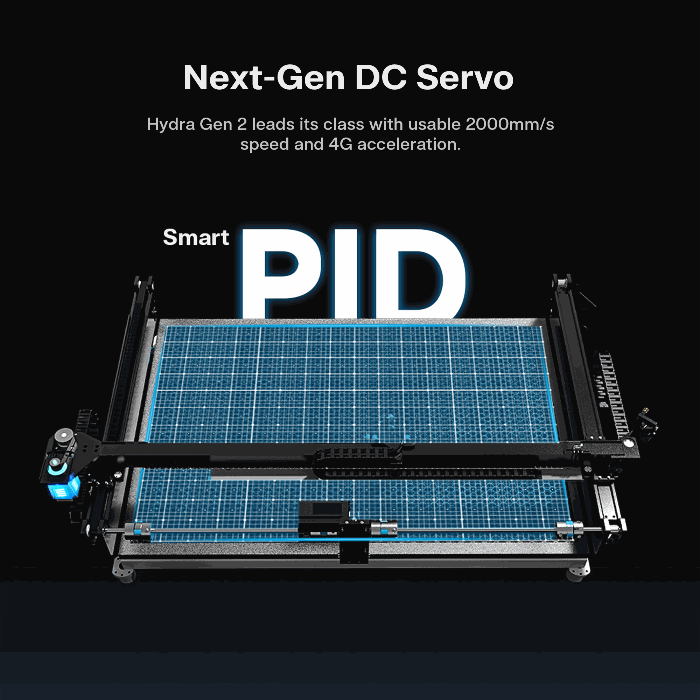

Servo-Driven Precision, Not Stepper Compromise: The production-grade servo motor with PID closed-loop feedback eliminates the missed steps that cause distortion on stepper machines, holding ≤0.01 mm repeat accuracy across the full 51-inch span.
-
RF Clarity for Engraving That Sells: The high-frequency, tight beam spot delivers consistent depth and true 3D photorealistic results at up to 2,000 DPI, with cut edges visibly sharper and cleaner than standard CO₂ alone.
-

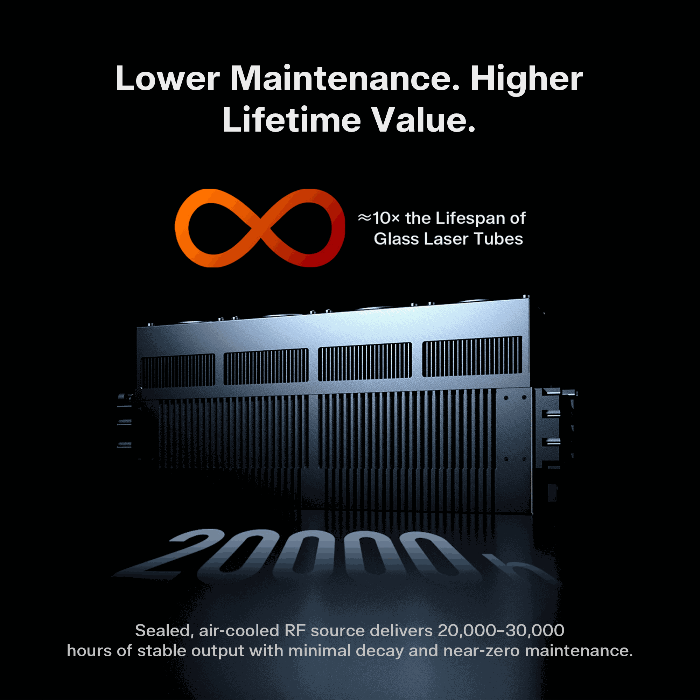

20,000–30,000 Hour RF Tube Life: The metal-sealed RF source lasts multiple times longer than glass tubes, turning consumable anxiety into predictable ROI for long-term industrial operation.
-
Expandable to All-Material Capability: Add the optional Q-Switch fiber upgrade (30W/50W, with a MOPA 60W option) for high-speed flying metal engraving and large-format 2.5D metalwork — one Hydra, three laser technologies.
-

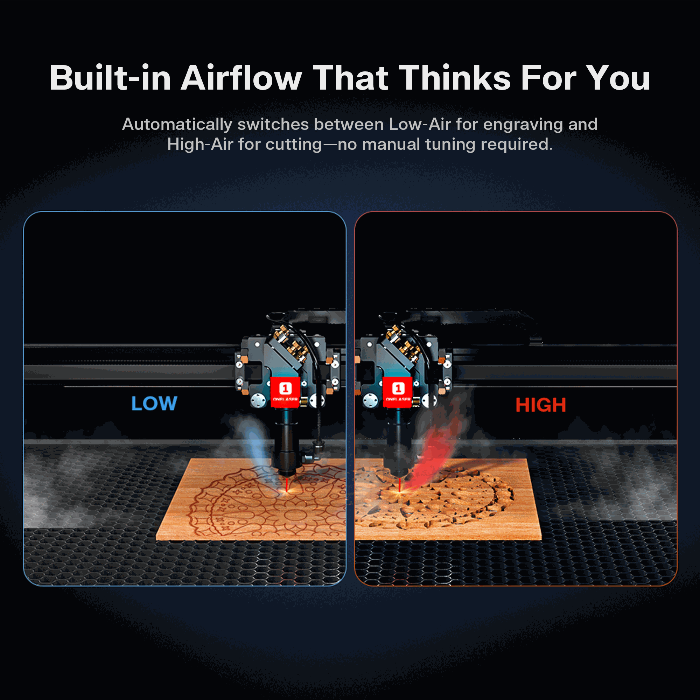

Smart Dual Air-Assist That Thinks for You: The built-in system automatically switches between gentle airflow for clean, detailed engraving and powerful airflow for fast, precise cutting — better results with zero manual adjustment.
-
Autofocus + Red Dot = Zero Guesswork: Automatic Z-axis focusing and red-dot positioning make setup fast and alignment exact on every job, keeping your production line moving.
-

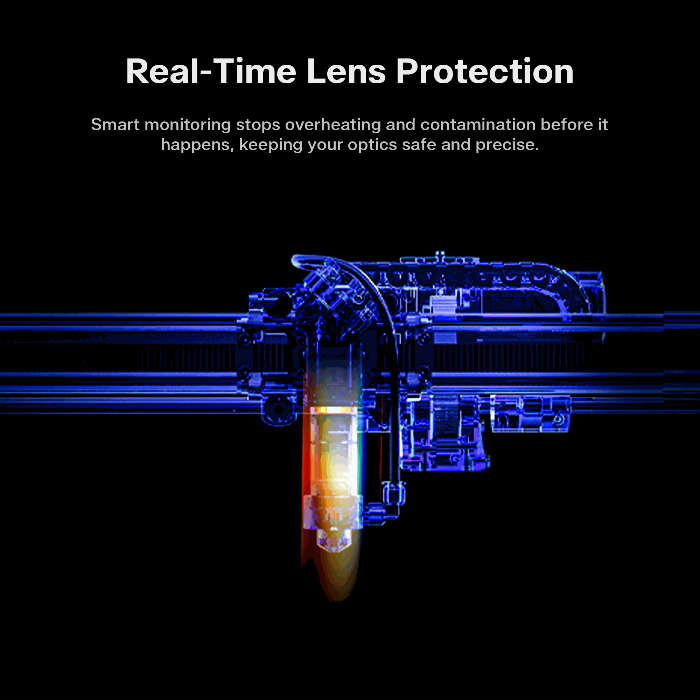

Detect. Alert. Protect: Real-time temperature monitoring triggers alarms and automatic shutoff before damage occurs, while dedicated lens temperature protection extends the life of your optics through long shifts.
-

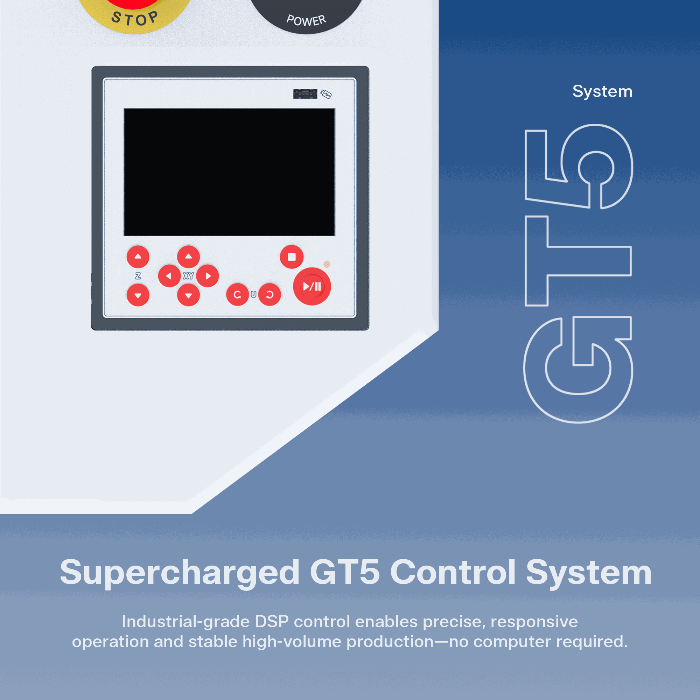

GT5 Industrial Control System: The DSP panel combines a touchscreen with physical keys and runs jobs offline — built for precise, high-volume cutting and engraving without a computer tethered to the machine.
-

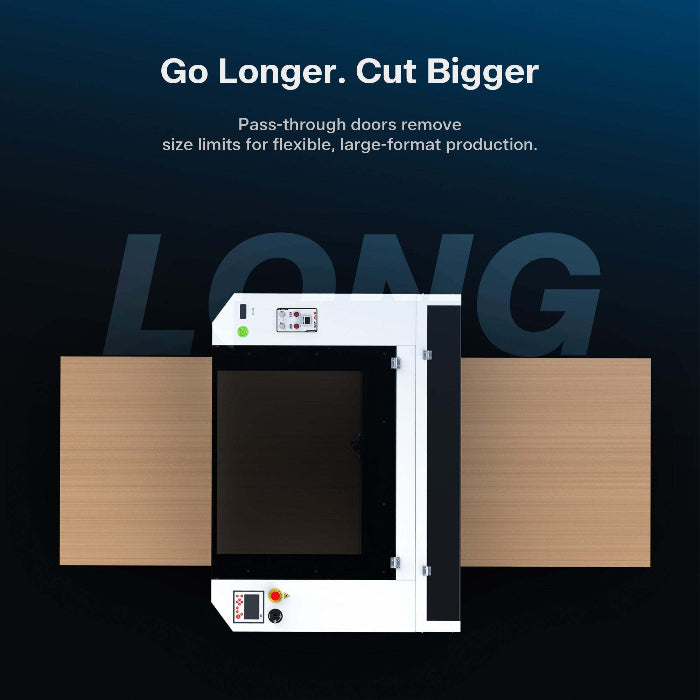

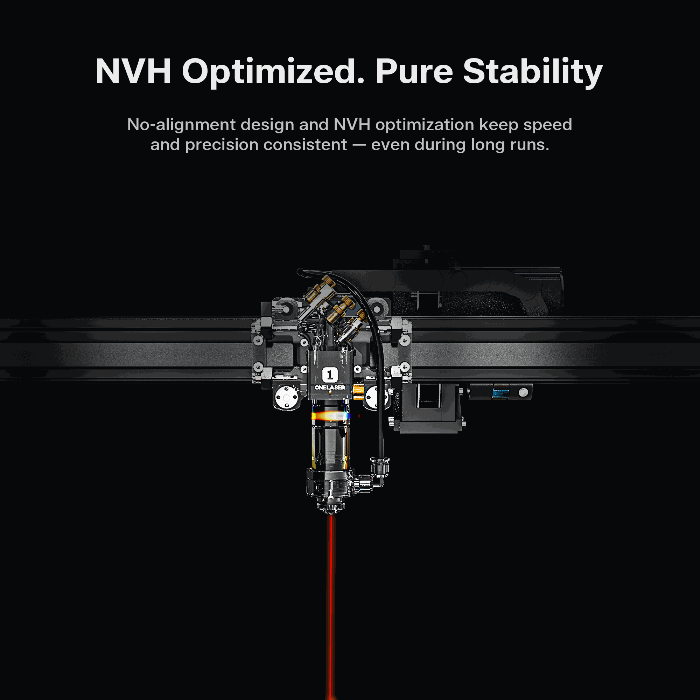

Ready for Every Job Type: Front-to-back pass-through handles long materials, any 4-pin rotary drops right in, the 66 lb table load takes heavy stock, and the 1.5"–4" lens range swaps in seconds as full assemblies — all on an NVH-optimized frame that stays rock-stable at full speed.
