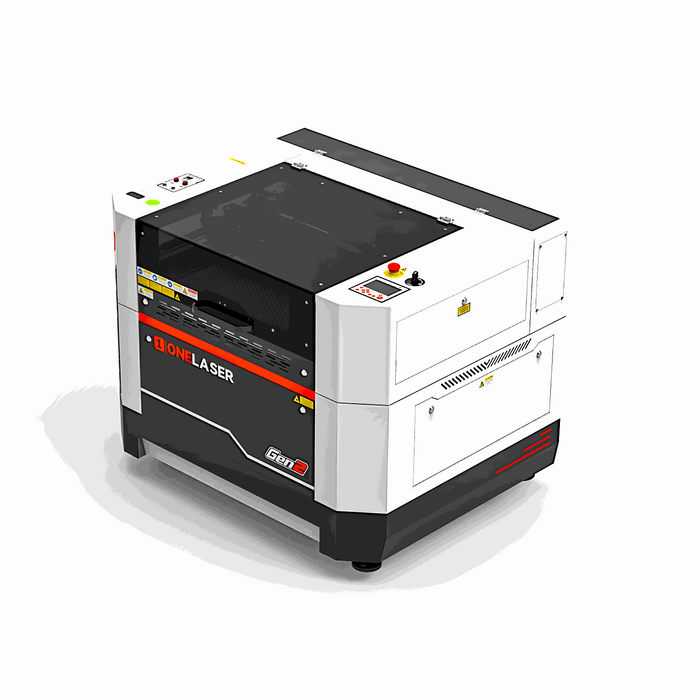

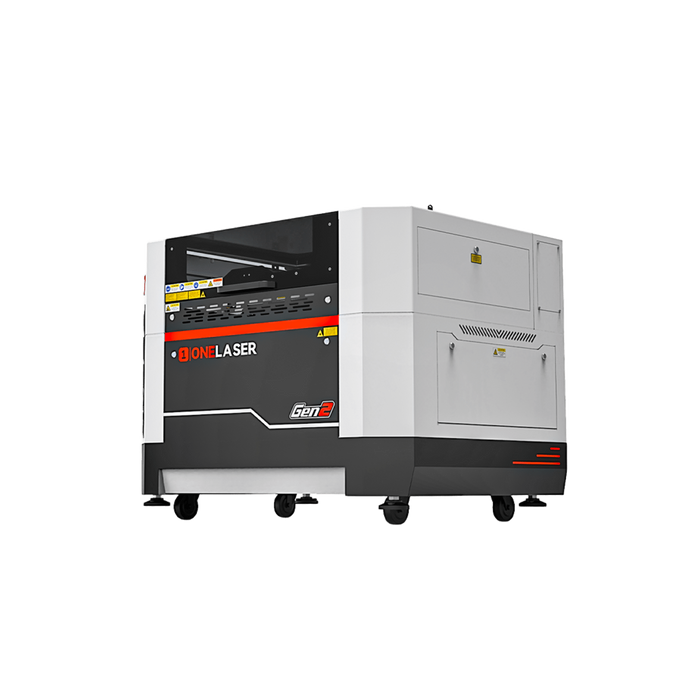

OneLaser Hydra™ 7 Gen2 - Industrial RF Laser Engraver (70W RF)
The OneLaser Hydra™ 7 Gen2 Industrial RF Laser Engraver represents the end game of performance laser design — a cabinet-class machine built around a 70W RF metal-sealed CO₂ tube that delivers next-generation speed, precision, and material capability. With a true 2,000 mm/s engraving speed, 4,000 mm/s travel speed, and industrial-grade 4G acceleration, the Hydra 7 Gen2 sets a new benchmark that leaves stepper-driven machines behind. The difference is in the drivetrain: an ultra-high-speed production servo motor with advanced PID closed-loop feedback eliminates the missed steps that plague open-loop systems, so patterns come out complete and flawless even at maximum velocity across the 27.56" x 19.69" work area.
RF technology is the heart of what makes the Hydra 7 Gen2 special. The high-frequency, tight beam spot produces crystal-sharp detail, consistent depth, and true 3D photorealistic engraving at up to 2,000 DPI with ≤0.01 mm repeat positioning accuracy — the kind of edge quality where RF cutting looks visibly cleaner and sharper than standard CO₂. The metal-sealed tube runs on air cooling with no chiller or water lines to maintain, and its 20,000–30,000 hour lifespan is multiple times longer than glass tubes, delivering predictable ROI for long-term production use. And the Hydra grows with your business: one machine supports three laser technologies, with an optional Q-Switch fiber upgrade (30W/50W) that unlocks high-speed flying metal engraving and large-format 2.5D metalwork.
Everyday operation is built for production pace. The built-in Smart Dual Air-Assist automatically switches between gentle airflow for clean engraving and powerful airflow for precise cutting, while automatic Z-axis autofocus and red-dot positioning eliminate setup guesswork. The GT5 industrial DSP control system pairs a touchscreen with physical keys and supports offline high-volume operation, a front-to-back pass-through design handles long materials effortlessly, and the machine accepts any 4-pin rotary plus a full 1.5"–4" lens range with fast full-assembly swaps. Real-time temperature monitoring with alarms and auto shutoff — including dedicated lens temperature protection — keeps both the machine and your optics safe through long production runs, all backed by NVH-optimized engineering for pure stability at speed.
OneLaser Hydra™ 7 Gen2 Specs
- Laser Source:
- 70W RF Metal-Sealed CO2
- Tube Lifespan:
- 20,000–30,000 Hours
- Working Area:
- 27.56" × 19.69" (700 × 500 mm)
- Z-Axis Travel:
- 8.86" (225 mm)
- Machine Dimensions (LxWxH):
- 51.2" x 41.1" x 40.7" (1300 × 1045 × 1035 mm)
- Machine Weight:
- 555.56 lb (252 kg)
- Cooling Method:
- Air Cooling
- Optional Fiber Laser Upgrade:
- Q-Switch 30W / 50W, MOPA 60W
- Motor:
- Ultra-High-Speed Servo with PID Closed-Loop Feedback
- Built-in Linear Rail:
- Yes (X-axis)
- Max Acceleration:
- 4G
- Max Engraving Speed:
- 2,000 mm/s
- Max Travel Speed:
- 4,000 mm/s
- Minimum Character Size:
- 0.0394" × 0.0394" (1.0 × 1.0 mm)
- Repeat Positioning Accuracy:
- ≤0.0004" (≤0.01 mm)
- Max Resolution:
- 2,000 DPI
- Max Table Load:
- 44.09 lb (20 kg)
- Rotary Compatibility:
- Any 4-Pin Rotary
- Air Assist System:
- Smart Dual Air-Assist (Built-in)
- Autofocus:
- Yes (Automatic Z-Axis Focusing)
- Red Dot Positioning:
- Yes
- Control Panel:
- GT5 Industrial DSP with Touchscreen and Keys, Offline-Capable
- Material Pass-Through:
- Yes (Front-to-Back)
- Lens Support:
- 1.5"–4" with Fast Full-Assembly Swaps
- Temperature Monitoring:
- Real-Time with Alarm and Auto Shutoff
- Lens Protection:
- Real-Time Lens Temperature Monitoring
OneLaser Hydra™ 7 Gen2 Features
-
True 2,000 mm/s with Industrial 4G Acceleration: Not just faster — exponentially faster. The Hydra 7 Gen2 holds consistent detail at speeds where other machines slow down, with 4,000 mm/s travel speed keeping dead time between cuts to a minimum.
-

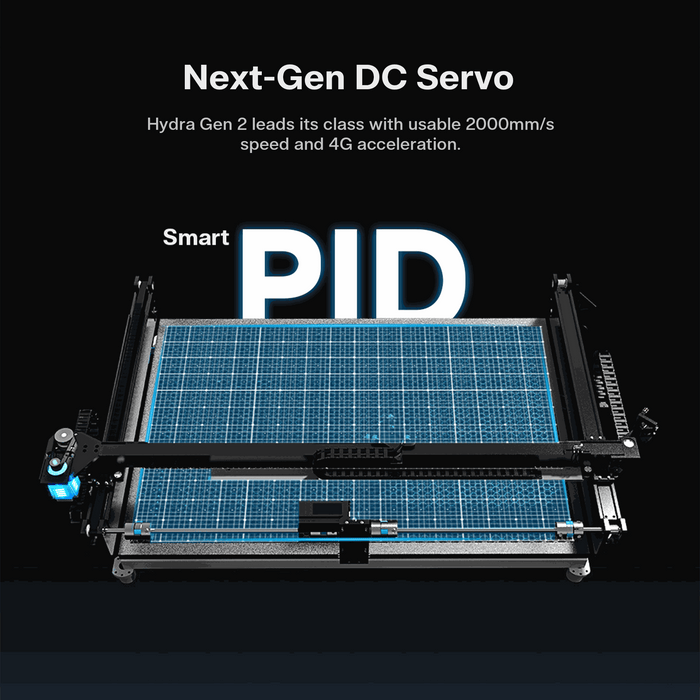

Servo-Driven Precision, Not Stepper Compromise: The production-grade servo motor with PID closed-loop feedback eliminates the missed steps that cause distortion and incomplete details on stepper machines — every pattern comes out complete, every time.
-

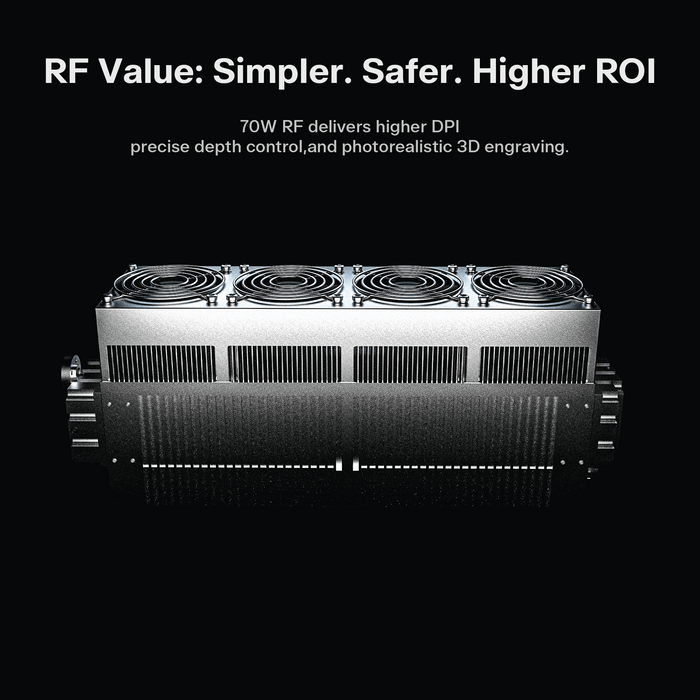

RF Clarity for Engraving That Sells: The high-frequency, tight beam spot of the 70W RF metal-sealed tube delivers crystal-sharp detail, consistent depth, and true 3D photorealistic results at up to 2,000 DPI — with cut edges visibly cleaner than standard CO₂.
-

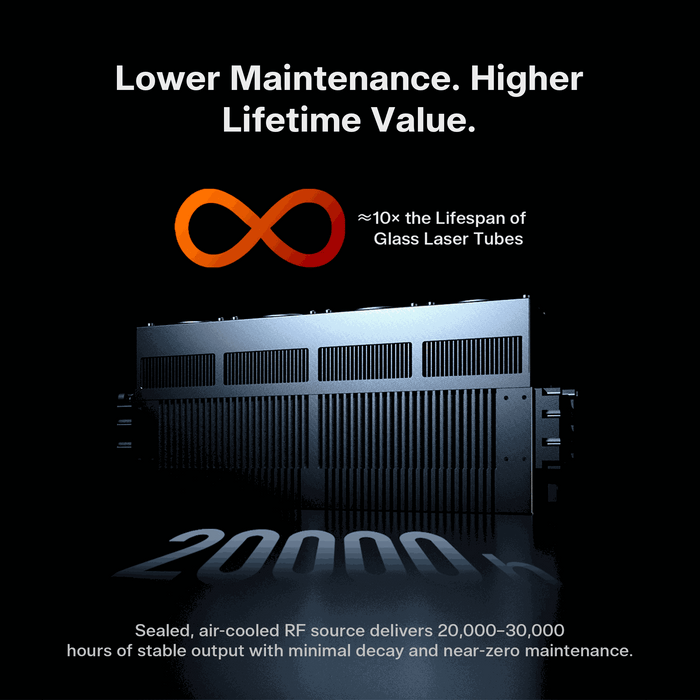

20,000–30,000 Hour Tube Life: The metal-sealed RF source lasts multiple times longer than glass tubes, turning consumable anxiety into predictable ROI for long-term industrial operation.
-
Air Cooled — Zero Water Maintenance: No chiller, no hoses, no leaks, no freezing. The RF tube's built-in air cooling means one less system to buy, plumb, and worry about.
-

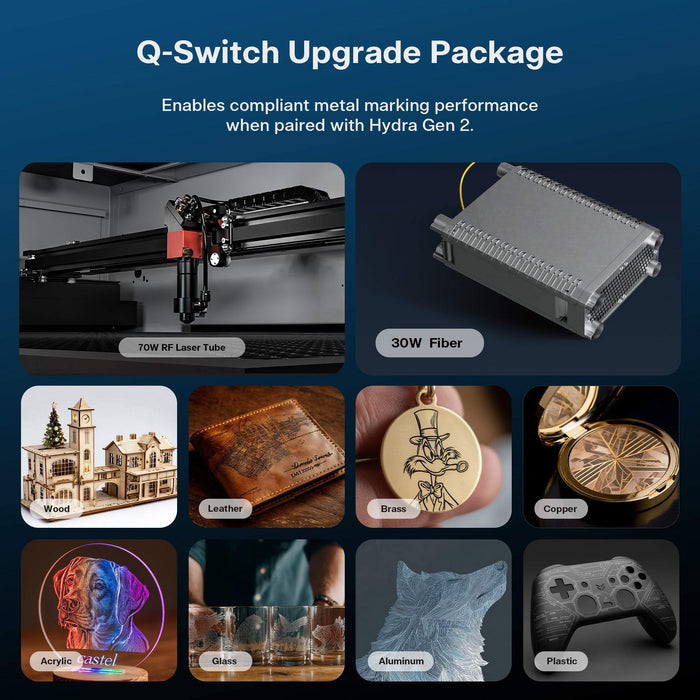

1 Hydra. 3 Technologies. Infinite Possibilities: Start with RF and add the optional Q-Switch fiber upgrade (30W/50W, self-installable) whenever you're ready for high-speed flying metal engraving and large-format 2.5D metalwork — one machine, every material.
-

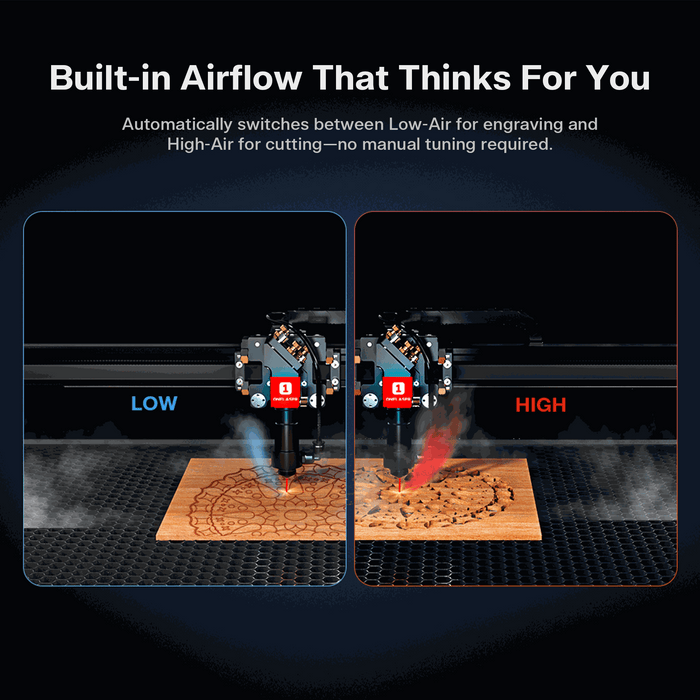

Smart Dual Air-Assist That Thinks for You: The built-in system automatically switches between gentle airflow for clean, detailed engraving and powerful airflow for fast, precise cutting — better results with zero manual adjustment.
-
Autofocus + Red Dot = Zero Guesswork: Automatic Z-axis focusing and red-dot positioning make setup fast and alignment exact on every job, keeping your production line moving.
-

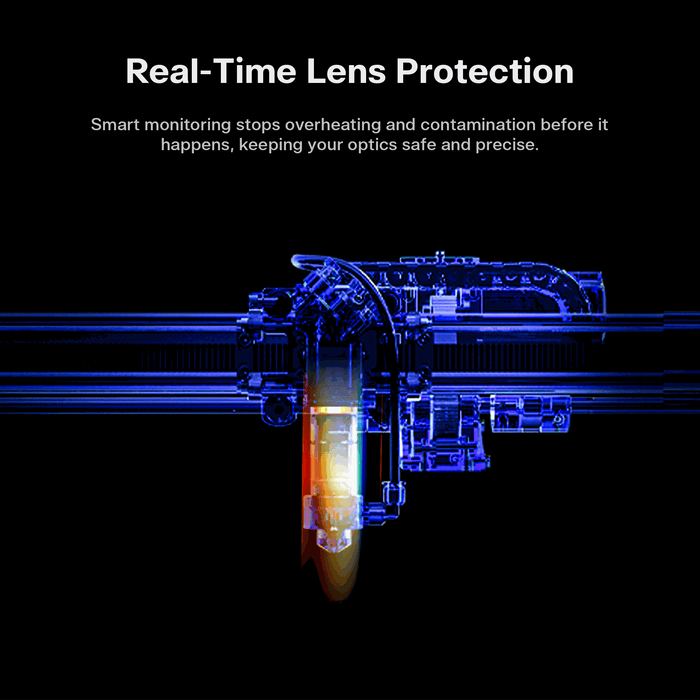

Detect. Alert. Protect: Real-time temperature monitoring triggers alarms and automatic shutoff before damage occurs, while dedicated lens temperature protection extends the life of your optics through long production runs.
-

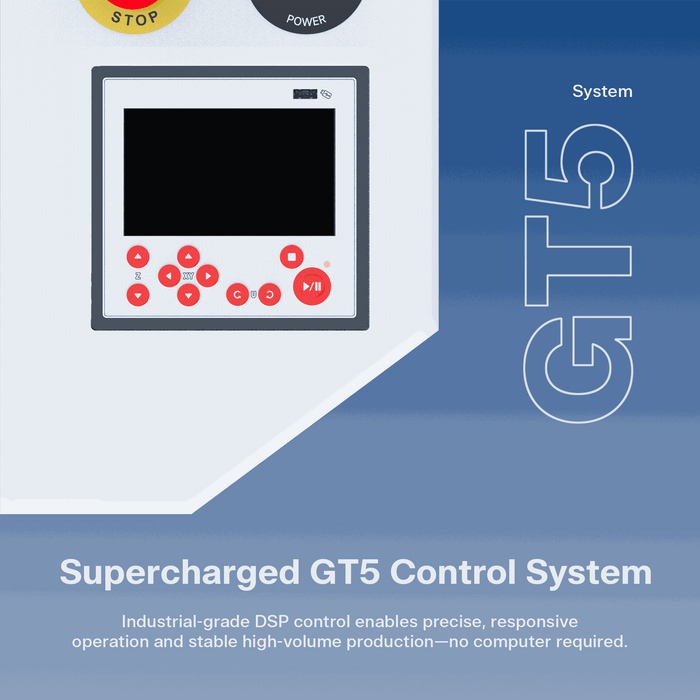

GT5 Industrial Control System: The DSP panel combines a touchscreen with physical keys and runs jobs offline — built for precise, high-volume cutting and engraving without a computer tethered to the machine.
-

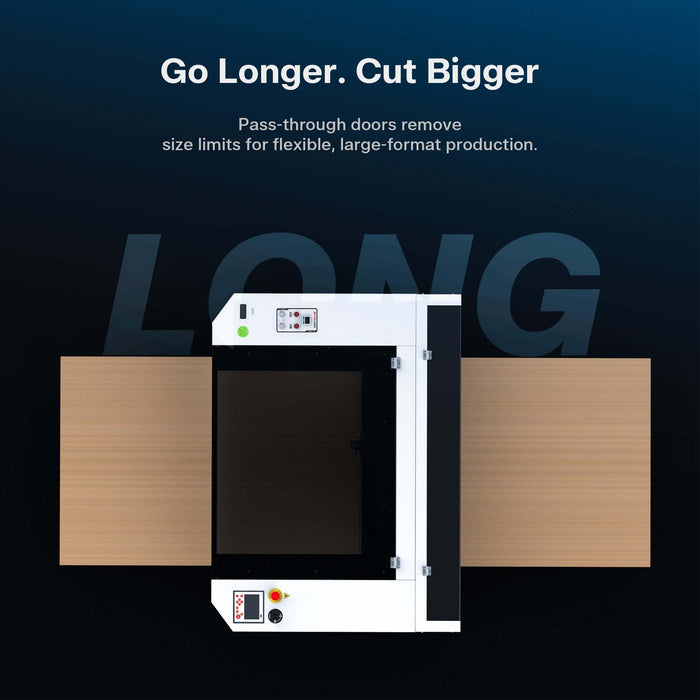

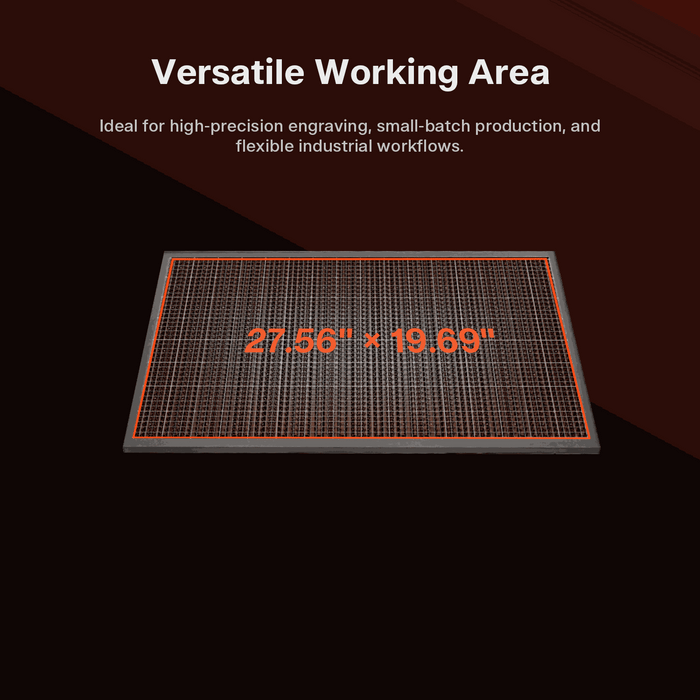

Built for Bigger and Longer Work: The front-to-back pass-through handles long materials effortlessly, the 27.56" x 19.69" bed suits flexible production workflows, and compatibility with any 4-pin rotary plus a full 1.5"–4" lens range keeps every job type in play.
-

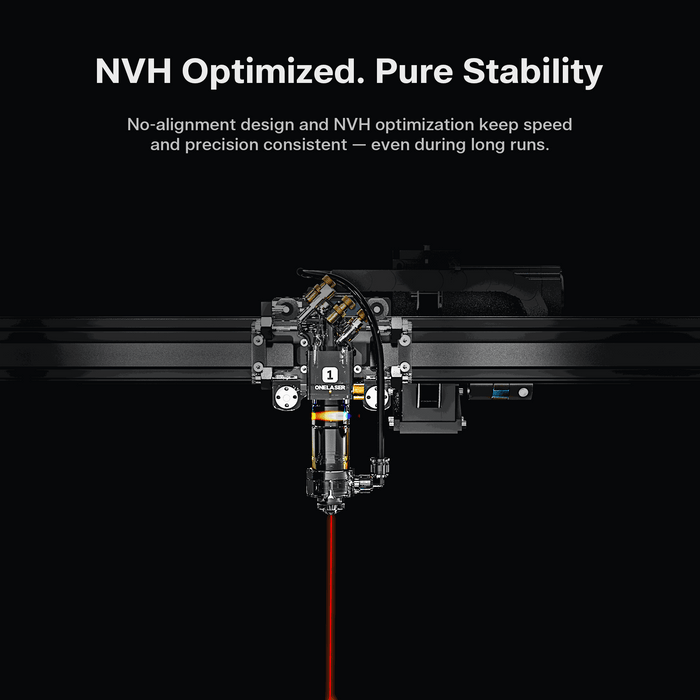

NVH-Optimized Stability: Engineered noise, vibration, and harshness control keeps performance stable and precise at high speeds — with no built-in compressor adding unwanted vibration to your cuts.
